Fiber Enforced PVC Hose Production Line
Our Fiber enforced pvc hose machine is designed to produce PVC fiber reinforced hose, the wall of which is three layers(PVC+Fiber+PVC), the outer layer and the inner layer both are soft PVC material, the middle layer is Terylene fibernetwork, which has good chemical and physical property. It is mainly used for the transfer of oil, air,water,high pressure or corrosive gas, chemical, agriculture irrigation and building.
Fill out my online form.
| model | HM45 | HM55 | HM65 | HM75 |
| Extruder(2 sets) | SJ45/30 | SJ55/30 | SJ65/30 | SJ75/30 |
| Pipe diameter(mm) | 6-16 | 8-25 | 12-50 | 20-50 |
| Output(kg/h) | 20-40 | 30-60 | 40-80 | 60-110 |
| Installed power(kw) | 35 | 42 | 50 | 65 |
The production process and machine details:
Function :

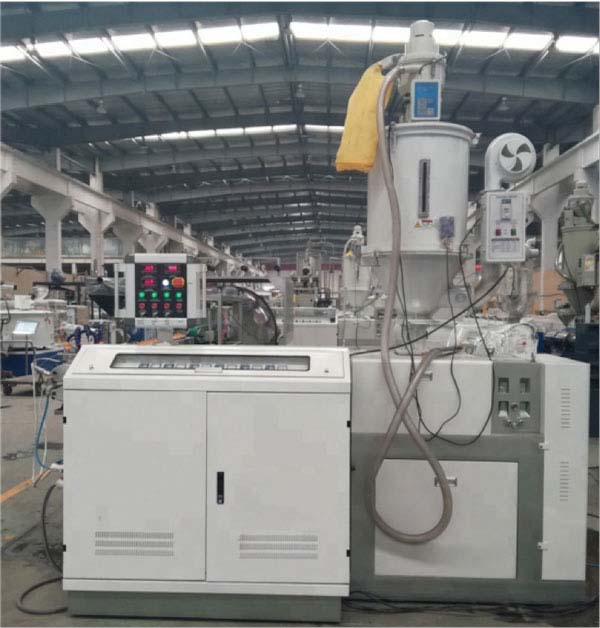

Heat and meltn soft pvc for producing pipes
Function :
Forming pipes to a good shape and spacific diameter.
Forming pipes to a good shape and spacific diameter.
Function :
Finalize the shape and diameter of the pipes
Finalize the shape and diameter of the pipes
Function :

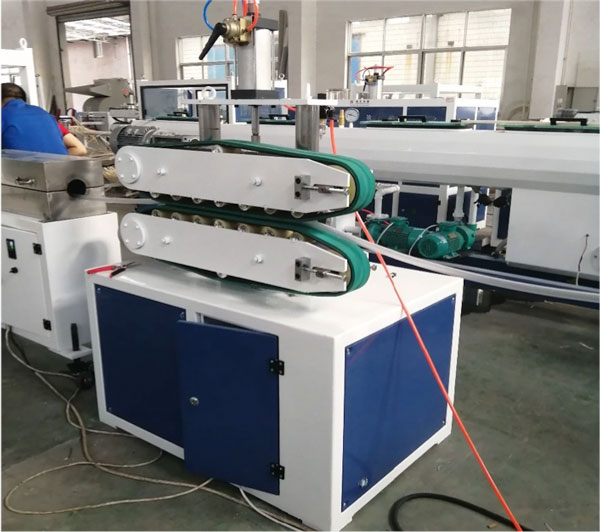

Pull pipes to next step.
Function :

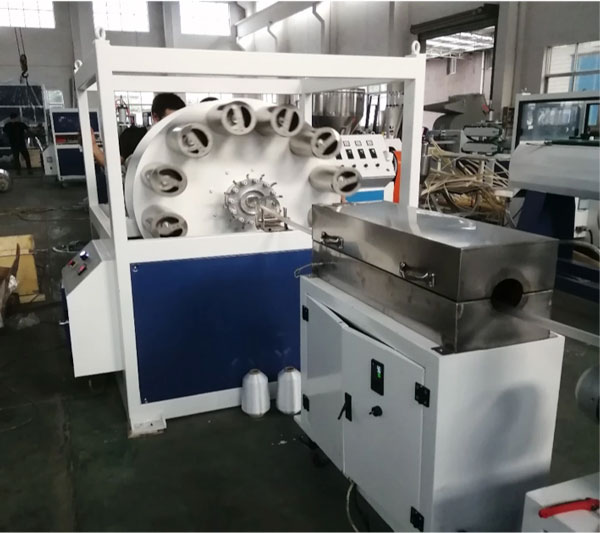

Knit the middle layer of the pipe to reinforce the internal pressure rating of the pipe
Function :

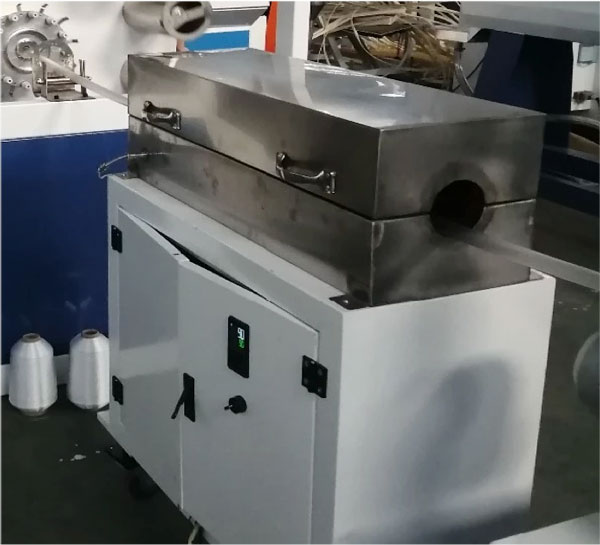

Heat the pipe to make it more firmly connected to the middle layer
Function :
Wind the pipe in roller for next packing step.
Wind the pipe in roller for next packing step.
