PE PP PPR PERT Pipe Production Line

PE pipe production line is mainly applied to produce agricultural water supply and drainage, building water supply and drainage, conduit of wire cables,the diameter and wall thickness of PVC pipes is customized.
The unit consists of conical twin-screw extruder, cavuum calibration and cooling tank, tractor, cutting machine and stacker, etc.

Fill out my online form.

Extruder model SJ65/33 SJ65/33 SJ75/33 60/38 SJ90/33 75/38 120/33 90/38 SJ120/33 100/38 SJ150/33 120/38
pipe diameter(mm) 20-63 20-110 75-250 110-315 160-450 315-630 400-800
Extruder power(kw) 37 55 110 160 250 280 355
Max output(kg/h) 120 180 330 380 450 750 900

Related machine:

1.Mixer
2.Pipe Crusher
3.Laser Printer
4.Gravimeter
5.Pulverizer

Equipment list and details：

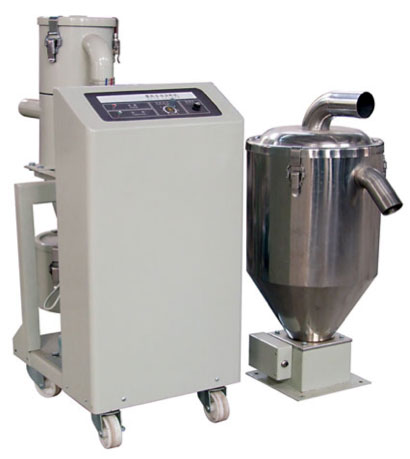

Function :

to load the raw material

Function :

to make the materials fully plasticized,and then formed through a die

Model SJ45/33 SJ65/30 SJ65/33 SJ75/33 60/38 SJ90/33 75/88 120/33 90/38 SJ120/33 100/38 SJ150/33 120/38
Screw diameter(mm) 45 65 65 75/60 90/75 120/90 120/100 150/120
Main motor(kw) 30 37 55 110 160 250 280 355
Capacity(kgs/h) 150 120 180 330 400 750 950 900
Central height(mm) 1000 1000 100 1000 1000 100 1150 1200

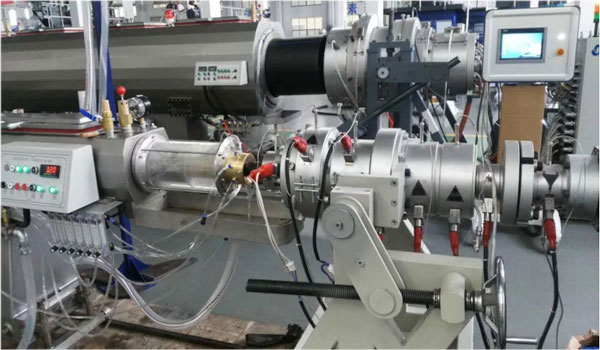

Function :

to make the PVC material into a pipe shape

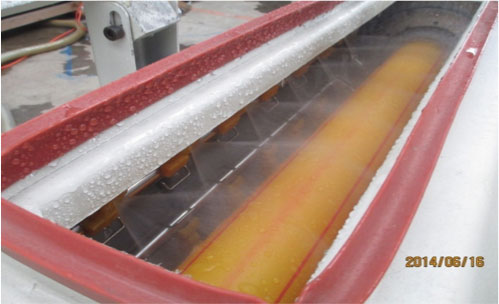

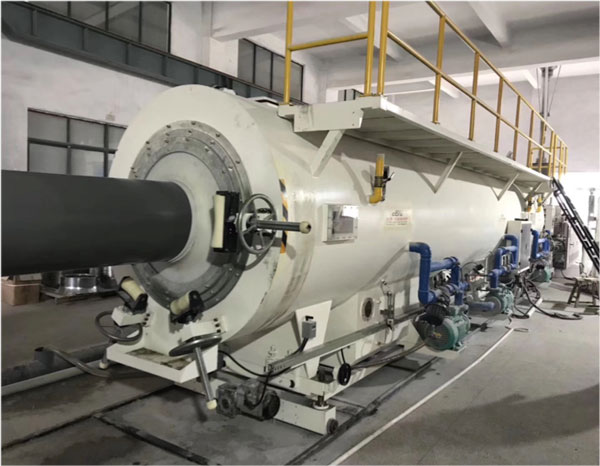

Function :

to shape and cool the pipe

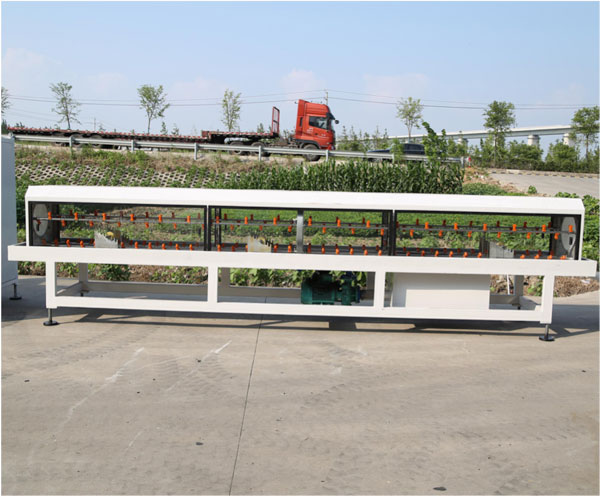

Function :

to cool large-diameter pipes again

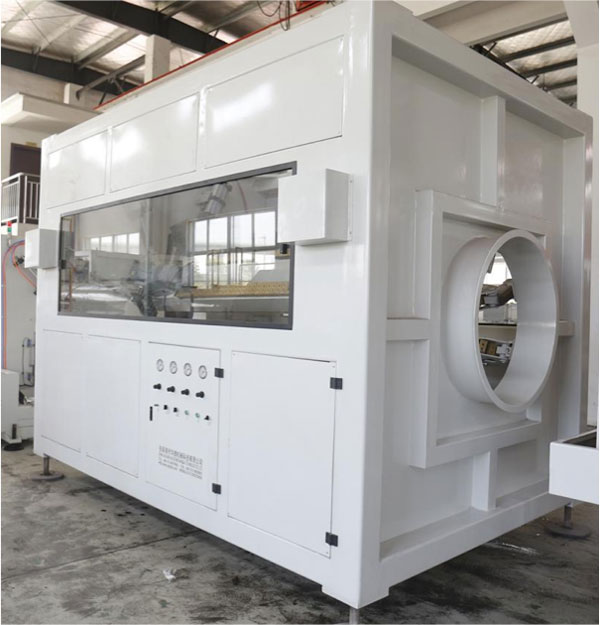

Function :

to haul off pipes smoothly

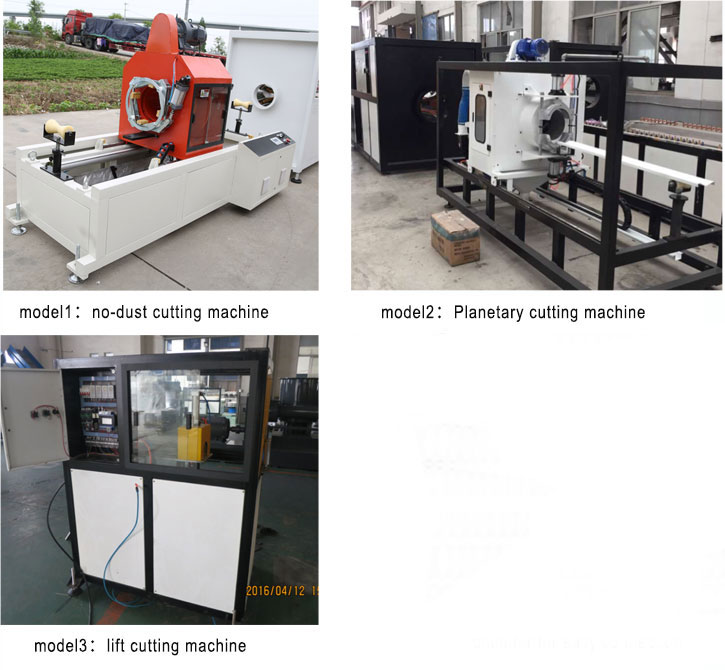

Function :

to cut pipes into a certain length

Function :

for pipe storage

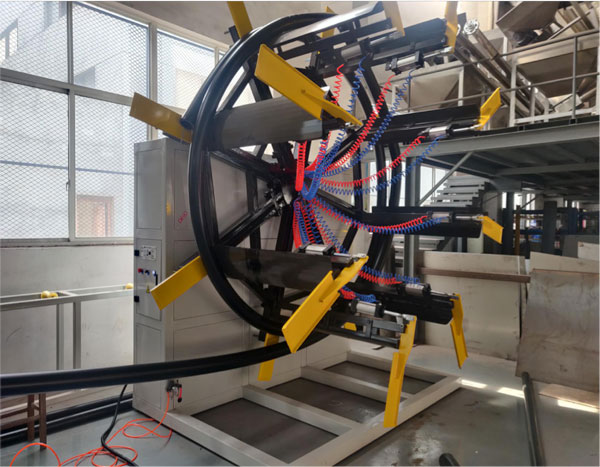

Function :

to wind the PE pipe
