Plastic PVC/U-PVC Pipe Belling Machine
Plastic PVC/U-PVC Pipe Belling Machine which connect to the pipe line, the processing are ful automatically from pipes conveying to working tables, pipe heating, pipe belling and pipe discharge. All these works are controlled by PLC system. And the heating time, belling processing can be adjusted according to detailed condtions of the formualtion and factory condition.
Fill out my online form.
| pipe line model | pipe diameter(mm) | Cooling Method | pipe length(mm) | Total power(kw) | output(piece/h) |
| GWK-32-4 | 16-32 | Wind or water | 4-6 | 5.53 | 2-40 |
| GWK-63-2 | 16-63 | Wind or water | 4-6 | 5.53 | 2-40 |
| GWK-110 | 20-110 | Wind or water | 4-6 | 6.77 | 2-40 |
| GWK-160 | 50-160 | Wind or water | 4-6 | 6.77 | 2-40 |
| GWK-250 | 63-250 | water | 4-6 | 10.5 | 2-40 |
| GWK-315 | 160-315 | water | 4-6 | 12.55 | 2-35 |
| GWK-500 | 250-500 | water | 4-6 | 15.15 | 2-30 |
| GWK-630 | 400-630 | water | 4-6 | 22.5 | 2-30 |
| GWK-800 | 500-800 | water | 4-6 | 36.2 | 2-30 |
Function :

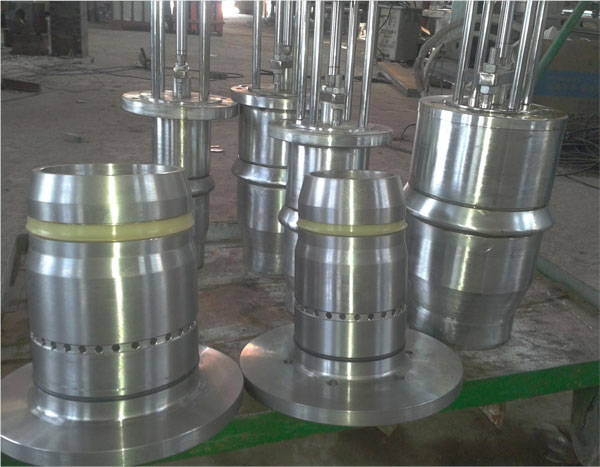

Different belling mould for U or R or Squre type socketing.
