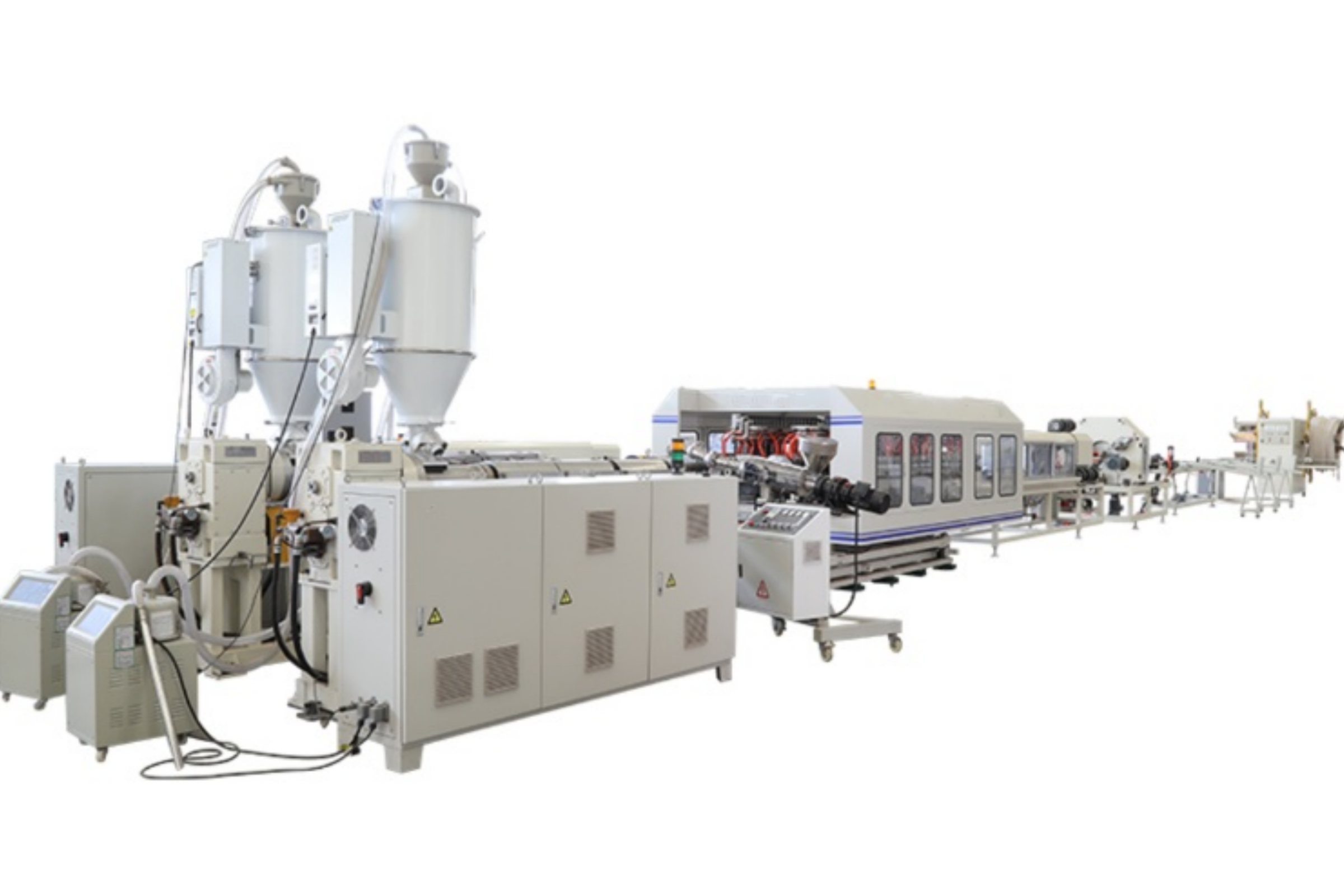

PP PE PVC double wall corrugated pipe production line

Double wall corruagted pipe production line is a new type of high-speed water cooled corrugated pipe production line, developed and designed by ourselves based on advanced foreign technology. Mainly using PP or HDPE as raw materials.

Due to its unique structure, this pipe has the advantages of light weight, good impact resistance, strong corrosion resistance, cold and heat resistance. It is widely used in urban drainage(water supply), geographical infiltraction, construction water supply and drainage, PEF, wire and cable laying, bridge steel cable sheath, agricultural irrigation, and other fields.

Fill out my online form.

TECHNICAL PARAMETER Normal model High speed model
MODEL SJDBGZ-30 SJDBGZ-45 SJDBGZ-50 SJDBGZ-65 GSDBGZ-65/30
Pipe range (mm) 4.5-9 9-32 9-32 16-63 9-58
L/D 30：1 30：1 30：1 30：1 30：1
Production capacity 10 30-40kg/h 30-50kg/h 60-80kg/h 60-100kg/h
Main motor power(kw) 4 11 15 18.5 18.5
Corrugators power(kw) 1.1 1.5 1.5 2.2 4
Pairs of moulds 42 50 50 50 72
Cooling model Moulds adopt fan cooling and the bottom of mould template water cooling Four water-circle cooling
Production speed(m/min) 6-10 8-12 8-12 8-12 25-30
Mould Connection mode Adopt chains and chains plate to connection mould and mould No chain

Function :

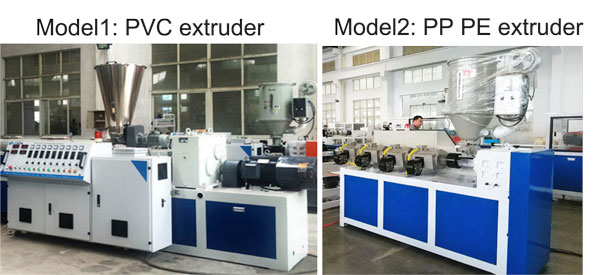

Melten and extrud raw material for pipe production

Function :
Extrud the melt material in a regular shape

Function :
Form the pipe in corrugate shape and pull the pipe to next step.

Function :
Weld final product for stock
