PVC Window and Door Profile Production Line
PVC profile production line is mainly applied to produce PVC window, door profiles, ceiling panel, electrical conduit,porous threads cable, special section profiles and so on.
The unit consists of loading device, conical twin-screw extruder, mould, calibration table, haul-off and cutting machine and stacker.
Related machine:
1.Mixer
2.Crusher
3.Pulverizer

Fill out my online form.

Main machine list:
Function :
To load the raw material
Spring Loader

Vacuum Feeder

To load the raw material
Spring Loader

Vacuum Feeder

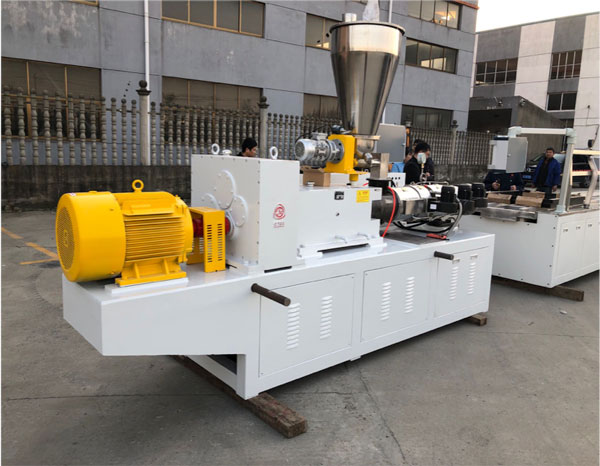

Function :
To make the materials fully plasticized, mixed uniformly and then formed through a die.
Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 | SJZ-110 |
Screw diameter(mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 | 110/220 |
Main motor(kw) | 18.5 | 22 | 30/37 | 55 | 110 | 160 |
Capacity(kgs/h) | 150 | 180 | 300 | 450 | 900 | 1400 |
Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1150 | 1200 |
Net weight(kg) | 3000 | 3500 | 4000 | 5500 | 8000 | 12000 |
Dimensions(m) | 3.6×1.1×2.1 | 3.6×1.1×2.1 | 4.2×1.5×2.4 | 4.7×1.5×2.4 | 6×1.6×2.5 | 5.4×1.8×3 |
Function :
To make the raw material into a shape designed

To make the raw material into a shape designed

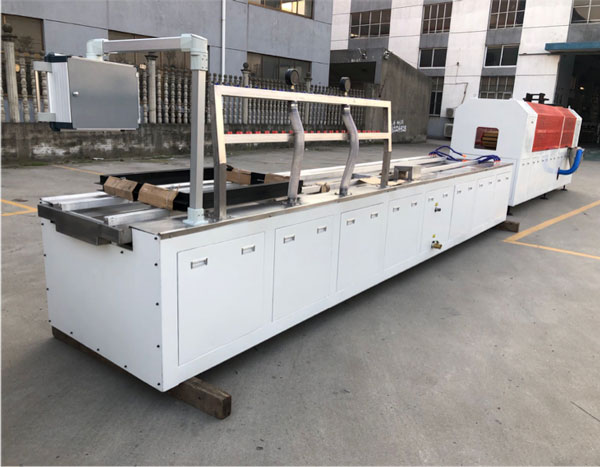

Function :
To shape and cool PVC profiles
To shape and cool PVC profiles

Function :
To haul off PVC profiles smoothly and cut them into a certain length

To haul off PVC profiles smoothly and cut them into a certain length

Function :
For PVC profiles storage

For PVC profiles storage
