Agricultural Film Washing Line
Made by Ivima Technology, which is used for agricultural film recycling.
By crushing or shredding, washing and drying, you will get clean and dry agricultural scraps, the scraps’ size can be 40-50mm.
With a pelletizing line, the waste plastic can be reused for producing baskets, pipes, bags, and injection etc.
| The capacity of the agricultural film washing line | |
| 1. 300kg per hour | 2. 500kg per hour |
| 3. 1000kg per hour | 4. 1500kg per hour |
| 5. 2000kg per hour | 6. 3000kg per hour |
The recycling process and machine details
Function :
GWSS-D shredder is mainly used to grind, crush and recycle the waste plastic. Materials suitable to be processed are: big solid block of plastic, film rollers, blocks of wood, packed paper and packed fiber etc.
| Model | Rotor swing diameter(mm) | Rotor speed(rpm) | Drive motor(kw) | Rotor blade Qty.(pcs) | Fixed blade Qty.(pcs) | Chamber size max(mm) |
| GWSS-D 800 | Φ435 | 37 | 37 | 60 | 2 | 700×800 |
| GWSS-D 1000 | Φ505 | 37 | 45 | 70 | 2 | 850×1000 |
| GWSS-D 1200 | Φ505 | 37 | 55 | 81 | 4 | 1150×1200 |
| GWSS-D 1400 | Φ505 | 37 | 75 | 102 | 4 | 1300×1400 |
Function :
Remove dirt or sand by friction paddles without water.

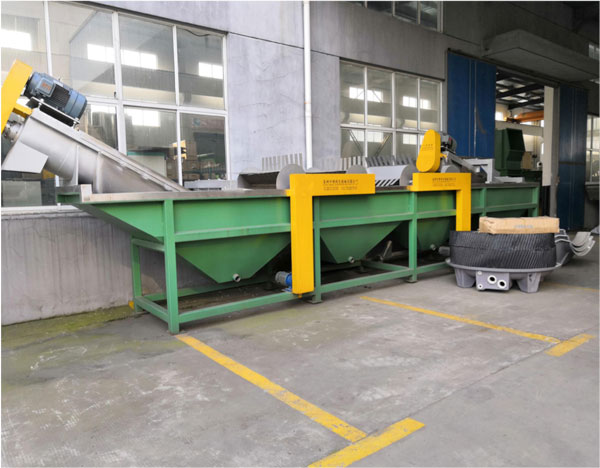

Function :
Equiped with underwater high speed friction washer and underwater friction type loader to deal with heavy pollution of dust and sand.

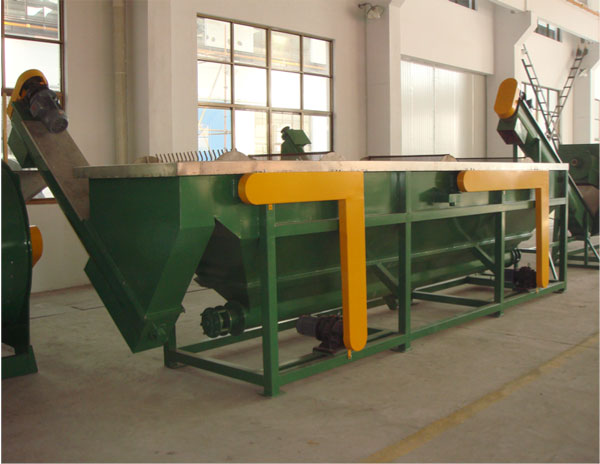

Function :
Wash away dirt with stirring paddles.

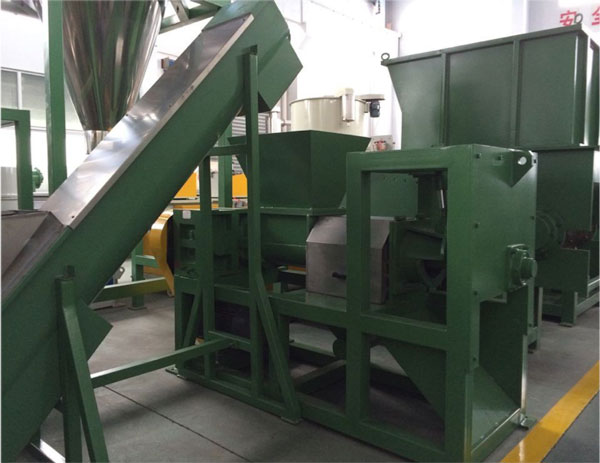

Function :
Squeeze wet film for wet film drying.
