Foamed ps eps eva epe recycling washing line

This washing line apply to recycle foamed ps eps eva epe material.
By crushing or shredding,washing.and drying.
You will get clean and dry Foam ps eps eva epe scraps,the scraps’ size can be 12-16mm,
With a pelletizing line, the waste plastic can be reuse for extrusion and injection plastic products.

Fill out my online form.

The capacity of Foam ps eps eva epe wahsing line:
1. 300kg per hour
2. 500kg per hour
3. 1000kg per hour

The recycling process and machine details:

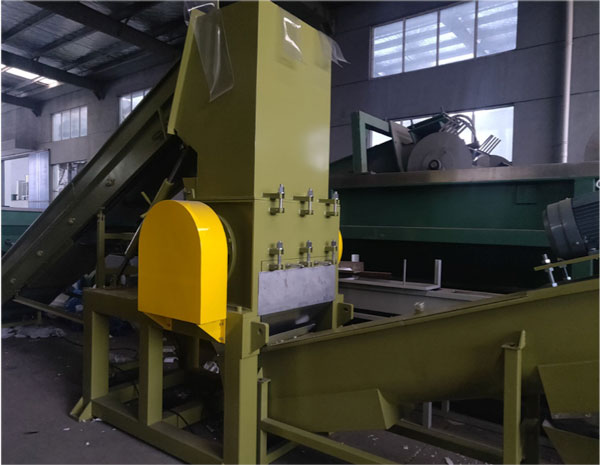

Function :
Crush PS EPS EVA EPE and get small plastic flakes size in 12-16mm which is suitable for washing and drying.

Model Feed mouth size(mm) Main motor power(kw) Moving knife Qty.(pcs) Fixed knife Qty.(pcs) Rotor Diameter(mm) Output(kg/h)
GWPS-Z 700 700×700 22-37 6/10 4 φ500 500
GWPS-Z 800 800×800 37-75 6/10 4 φ600 600
GWPS-Z 1000 1000×1000 55-110 10/14 4/6 Φ700 800
GWPS-Z 1200 1200×1000 90-132 10/14/18 4/6 Φ800 1000
GWPS-Z 1500 1500×1000 110-200 14/18 4/6 Φ1000 1200

Function:
Wash away dirt with stirring paddles.

Function :
Wash away dirt with stirring paddles.

Function :
Dry the crushed cleaning plastic scraps from washing tank.
