Plastic agglomerator machine

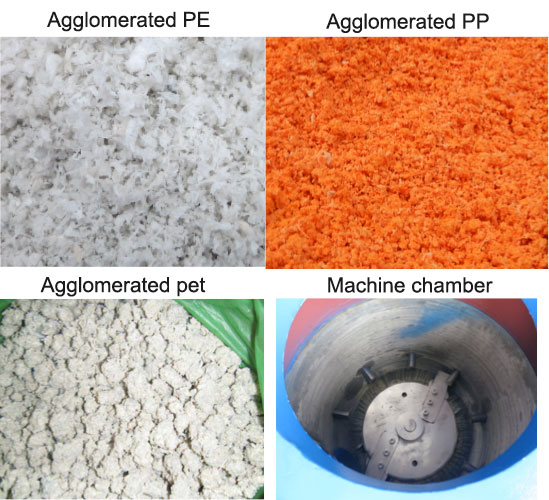

Plastic Agglomerator can directly recycle the waste plastic films and other products less than 2 mm wall thickness into granules, like films made of soft PVC, HDPE, LDPE, PP ,pet and other thermo plastics. When the waste plastic is put into the chamber, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife.
During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the material will be going to become semi-plasticizing state.
Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. So the material being crushed will become small particles or granules.
Model | Effective Volume(L) | Motor Power(kw) | Rotating Blades(pcs) | Fixed Blades(pcs) | Capacity(kg/h) | |
GWSL-100 | 75 | 37 | 2 | 6 | 100 | |
GWSL-200 | 150 | 55 | 2 | 6 | 150 | |
GWSL-300 | 225 | 75 | 2 | 8 | 200 | |
GWSL-500 | 375 | 90 | 4 | 8 | 300 | |
GWSL-600 | 450 | 110 | 4 | 8 | 400 | |
GWSL-800 | 600 | 132 | 4 | 8 | 550 | |
GWSL-1000 | 850 | 160 | 4 | 8 | 600 | |
GWSL-1500 | 1250 | 200 | 6 | 11 | 700 |
