PP PE Film/Woven Bag Recycling Washing Line

Made by Ivima technology, which is applied to recycling PP PE film and pp woven bag, jumbo bag.
By crushing or shredding, washing and drying, you will get clean and dry PP PE scraps, the scraps’ size can be 40-50mm.
After pelletizing, the waste plastic can be reused for producing injection, pipes, bags etc.

Fill out my online form.

The capacity of the PP PE film/woven bag washing line
1. 300kg per hour 2. 500kg per hour
3. 1000kg per hour 4. 1500kg per hour
5. 2000kg per hour 6. 3000kg per hour

Related Machine:

1.Squeezer
2.Wet Film pelletizing line
3.Agglomerator

The recycling process and machine details:

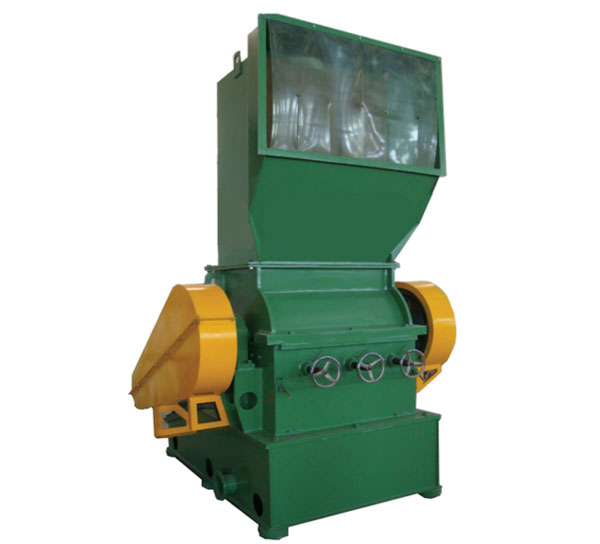

Function :

Crush waste plastic film to suitable size. Good for washing and drying.

Model Feed mouth size(mm) Main motor power(kw) Moving knife Qty.(pcs) Fixed knife Qty.(pcs) Rotor Diameter(mm) Output(kg/h)
GWPS-Z 700 700×700 22-37 6/10 4 φ500 500
GWPS-Z 800 800×800 37-75 6/10 4 φ600 600
GWPS-Z 1000 1000×1000 55-110 10/14 4/6 Φ700 800
GWPS-Z 1200 1200×1000 90-132 10/14/18 4/6 Φ800 1000
GWPS-Z 1400 1400×1000 110-200 14/18 4/6 Φ1000 1200

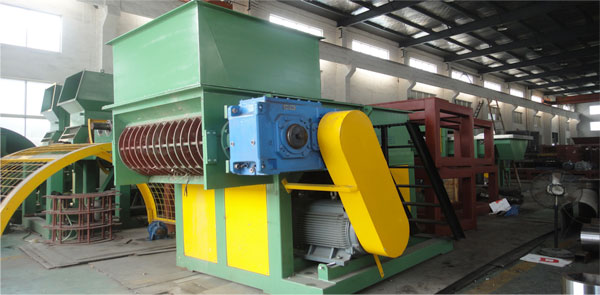

Function :

GWSS-D shredder is mainly used to grind, crush and recycle the waste plastic. Material suitable to be processed are: big solid block of plastic, film rollers, blocks of wood, packed paper and packed fiber etc.

Model Rotor  diameter(mm) Rotor speed(rpm) Drive motor(kw) Rotor blade Qty.(pcs) Fixed blade Qty.(pcs) Chamber size max(mm)
GWSS-D 850 Φ435 37 37 60 6 700×730
GWSS-D 1200 Φ505 37 55 81 8 800×1010
GWSS-D 1500 Φ505 37 75 102 10 800×1290
GWSS-D 2000 Φ505 37 55×55 144 14 800×1850

Function :
Remove dirt or sand by friction paddles with or without water.

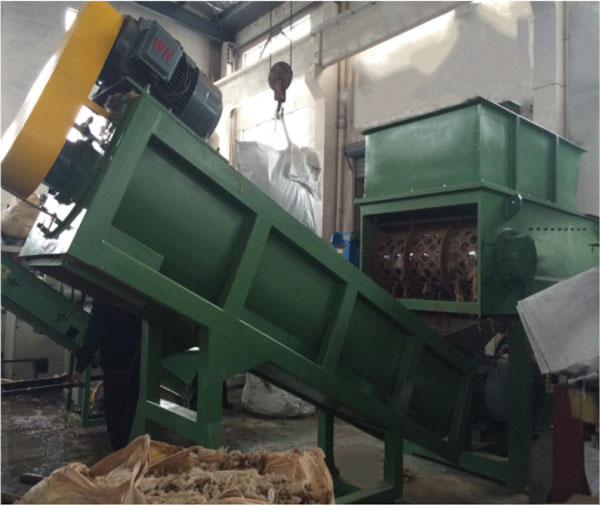

Model 1: Dry friction washer

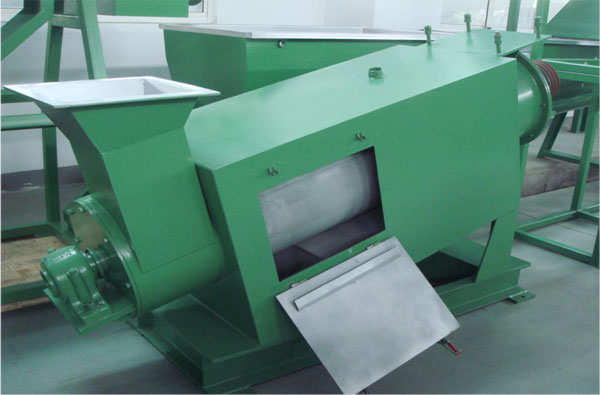

Model 2: Wet Frction washer

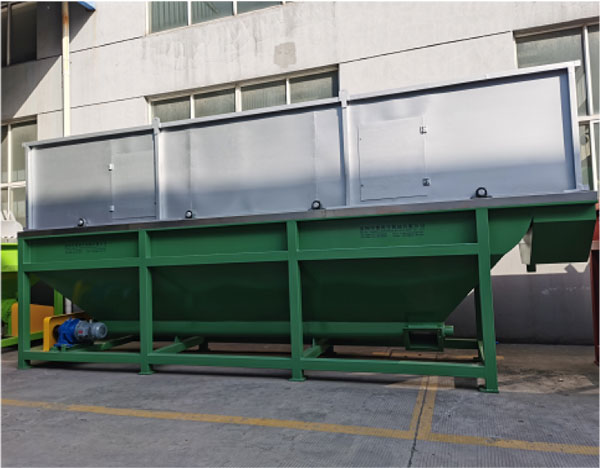

Function :
Use hot water to wash the oil and chemical pollutants.

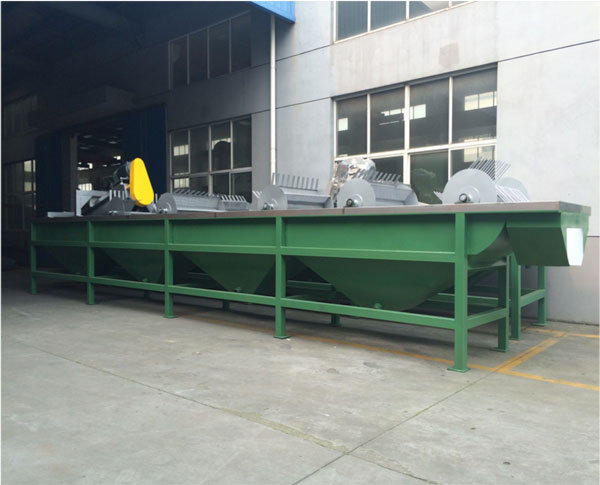

Function :
Wash away dirt with stirring paddles.

Function :
Dry the crushed cleaning film scraps comes from the washing tank.

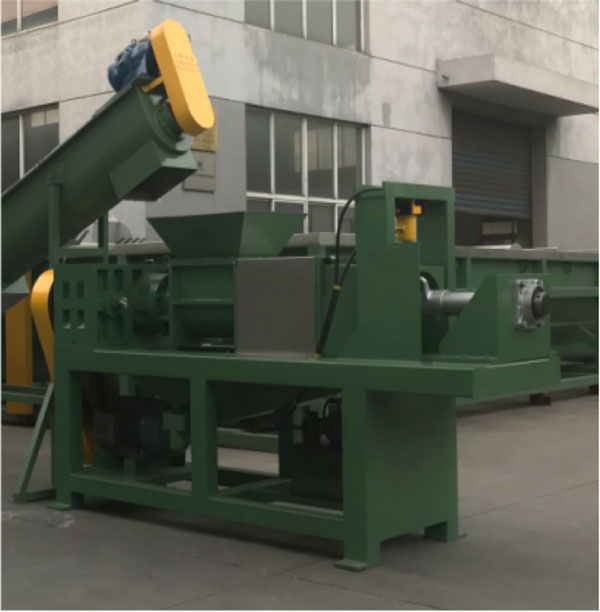

Model 1: squeezing drying machine

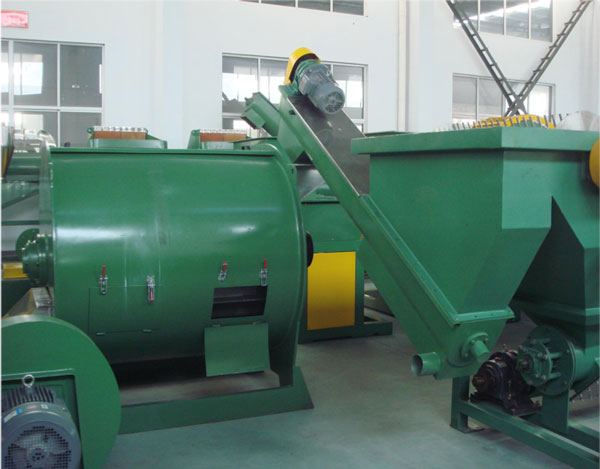

Model 2: Horizontal type dewatering machine

Function :
Further drying washed plastic film scraps

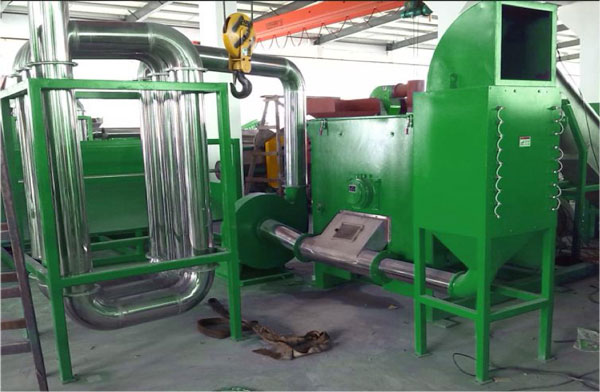

Model 1: Hot air dryer pipeline

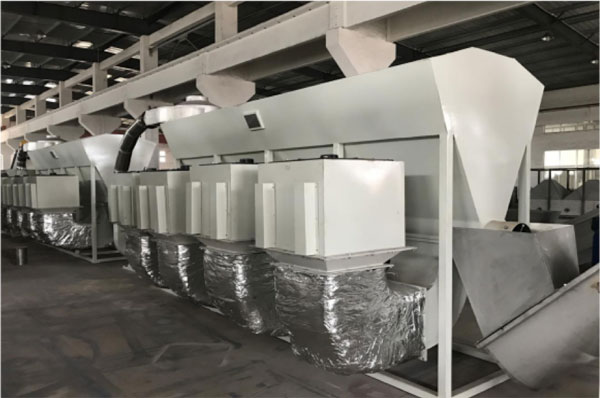

Model 2: Hot air dryer silo
