Wet Plastic Pelletizing Machine

Description:
Our wet plastic pelletizing line is applied to recycle wet PP/PE film and woven bag etc.the raw material moisture can accept less than 15%.
The unit consists of loading device, extruder, die head, screen exchanger,pellet cutter,dewatering machine，vibrating sieve and silo. The machine capacity is available for 200-1000kg per hour.

Fill out my online form.

Model Screw Diameter(mm)
Front/Back		 Screw Length(mm) Main Motor(kw) Capacity(kg/h)
GW220 220 3300-3800 90/110 250-350
GW250 250 4000-4500 132/160 500-600
GW220*2 220*2 3300-3800*2 90*2=180 600-800
GW250*2 250*2 4000-4500*2 132*2=264 800-1000

Related Machine:

PP PE film/woven bag washing line

Equipment list and details::

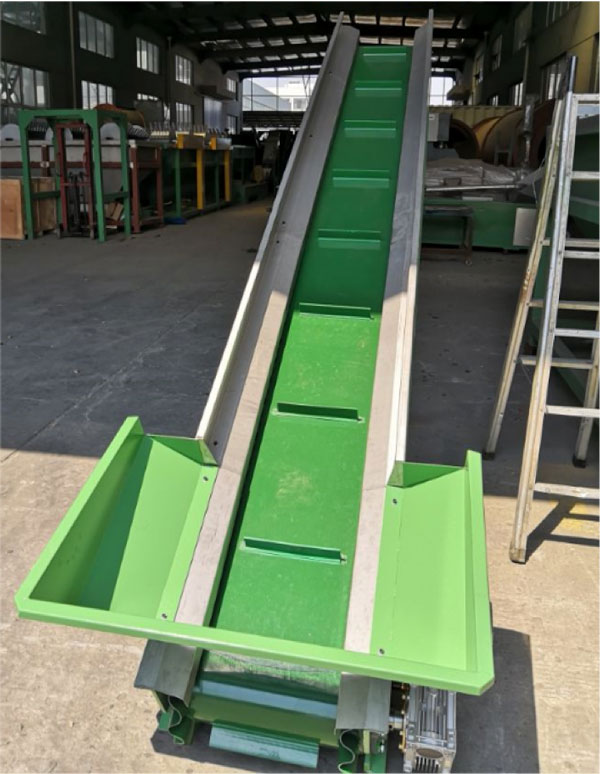

Function :

to load wet plastic film into the extruder

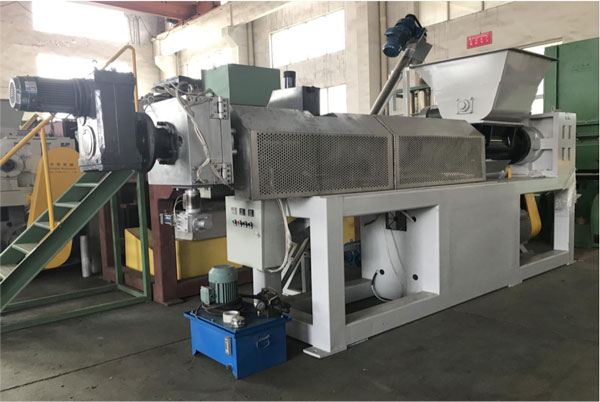

Function :

melt plastic and exhaust waste air with degassing zones.

double stage can get more good quality final granules

Model Screw Diameter(mm)
Front/Back		 Screw Length(mm) Main Motor(kw) Capacity(kg/h)
GW220 220 3300-3800 90/110 250-350
GW250 250 4000-4500 132/160 500-600
GW220*2 220*2 3300-3800*2 90*2=180 600-800
GW250*2 250*2 4000-4500*2 132*2=264 800-1000

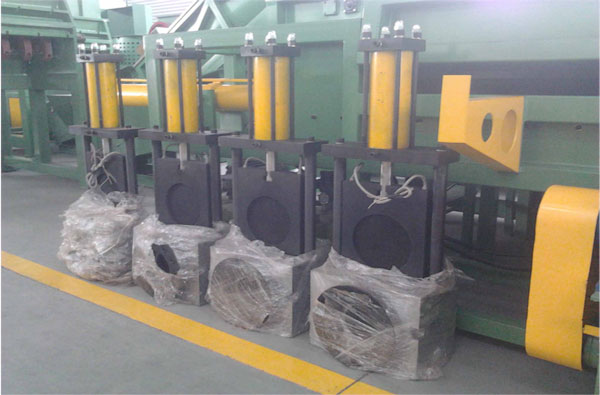

Function :

Filter out impurities

Model Screen Diameter(mm) Output(kg) Heating Power(kw)
160 164 900 6.6
200 200 1300 7.8
260 264 2200 12.4
300 306 2700 14

Function :

Form plasticized plastic to a particular shape for follow-up process.

Water-ring type Cutting Device
Function :
Cut material out from die head to regular shape. Rinse to cool and shape up.

strand type cutting Device
Function:
Cut noodles to get regular plastic pellets.

Function :
Remove water by centrifugal force

Function :

Select right sized plastic granules，air blower and silo is for granules storage
